WARM PANEL

Heating floor

High density PET foam core  100% recycled  (polyethylene terephthalate) coated with glass-fibre reinforced polyester resin in which is inserted a heating fabric under the upper skin with a power of 350 w/m2 (Other power ratings available on request).









Advantages :

  • A heating solution integrated into the floor, making it invisible.

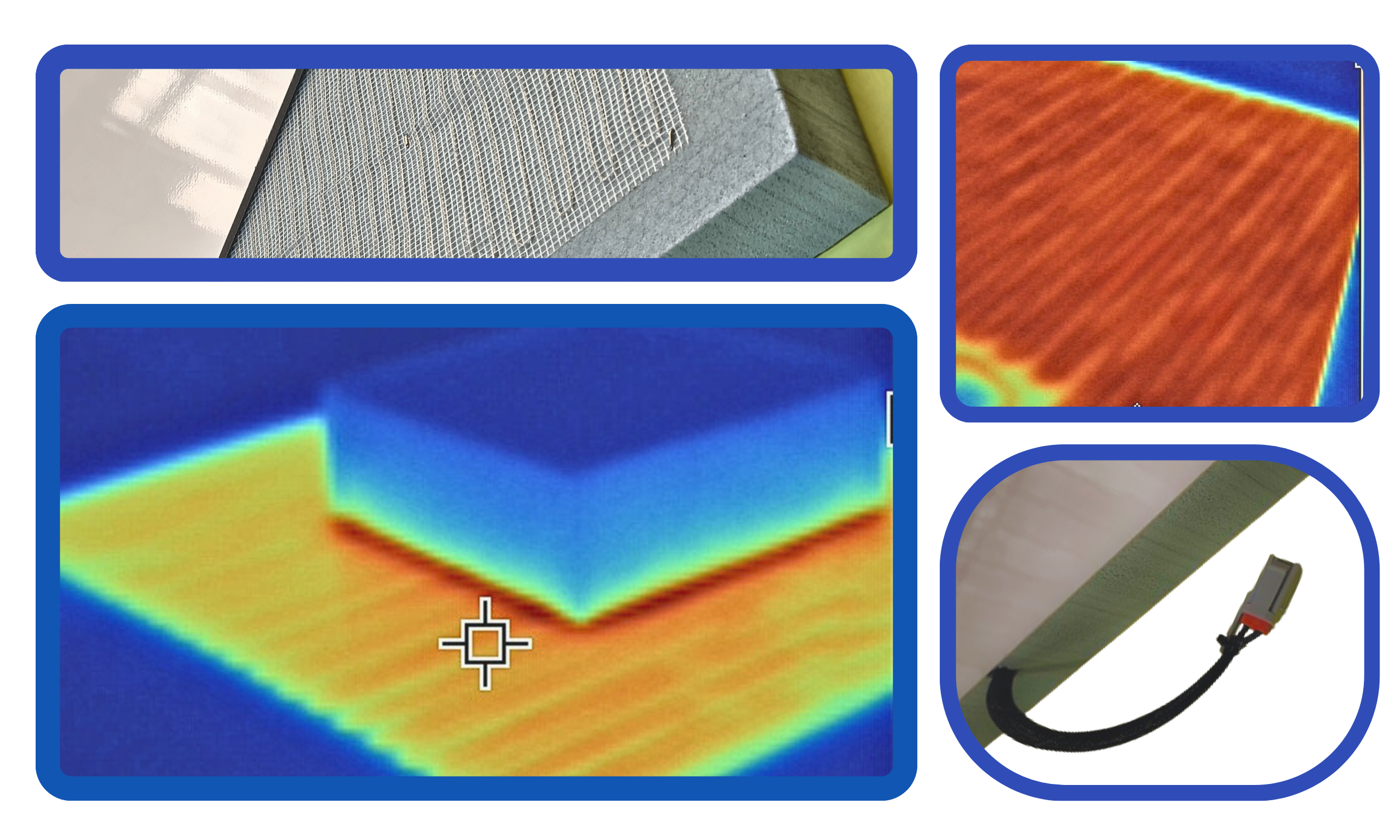

  • Excellent heating performance and even temperature distribution.
  • Saves space compared with wall-mounted heaters.

Dimensions :

  • Maximum width: 2600 mm
  • Maximum length: 8000 mm
  • Other length on request.

Standard colour :

white RAL9010.

Options :   –

  • other colours on request
  • possibility of adding a corundum-based anti-slip coating

Applications :

  • Floors for DEDICATED VEHICLES: medical check-ups, X-rays, blood donations, sports vehicles, etc.
  • Floors for TRUCKS and goods transported
  • Under controlled temperature

Our panels fulfill the specifications of the norm NFT 57-950-1 – Please see also our user’s guide. Tolerances : Length : +/-3 mm if L < 3m, +/-5 mm if L > 3m //Width: +/- 3 mm/Thickness. : +/-1 mm/Diagonal diff.: 6 mm.  Weight : +/-10%.

This document has no contract value. Characteristics are only given for information and may be changed according to variations of raw materials. Our sales and conditions terms are available upon request or on our website.
