Nidalit – Honeycomb core

NIDALIT honeycomb Panel Carlier Plastiques

NA45L / NAP6 / NAP7

Lightweight panel with honeycomb core

This panel considerably improves payload and is waterproof.

Polypropylene honeycomb core coated on both sides with glass fibre reinforced polyester resin.

PRODUCT DETAILS

Thicknesses and weights :

  THICKNESS in mm 14 17
  Weight kg/m2 NA45L  5,7 6,1
  Weight kg/m2 NAP6 7,7 7,9
  Weight kg/m2 NAP7 8,3 8,5
  Coef. of insulation W/m².°K (NA45L) 1.58 1.40

Advantages :

Strong lightweight panel.
Excellent resistance to humidity in external uses.

Types / Glass reinforcement :

NA45L : 850g/m²     NAP6 : 1230g/m²     NAP7 : 1510g/m²

Dimensions :

Other thicknesses : upon request.
Standard height  : 2480 mm
Maximum height  : 2850 mm

Upon specific request :

  • Coloured panels.
  • Special cuts according to drawings.
  • Peripheral and intermediate wood according to drawings.
  • Panels protected with plastic film upon request.

Applications :

Boxes, containers of lightweight vehicles, bottoms of swimming-pools.

Our panels fulfill the specifications of the norm NFT 57-950-1 – Please see also our user’s guide. Tolerances : Length : +/-3 mm if L < 3m, +/-5 mm if L > 3m //Width: +/- 3 mm/Thickness. : +/-1 mm/Diagonal diff.: 6 mm. Weight : +/- 10%.

This document has no contract value. Characteristics are only given for information and may be changed according to variations of raw materials. Our sales and conditions terms are available upon request or on our website.

Nidalit – Honeycomb core

download-pdf
NIDALIT honeycomb Panel Carlier Plastiques

NA45L / NAP6 / NAP7

Lightweight panel with honeycomb core

This panel considerably improves payload and is waterproof.

Polypropylene honeycomb core coated on both sides with glass fibre reinforced polyester resin.

PRODUCT DETAILS

Thicknesses and weights :

  THICKNESS in mm 14 17
  Weight kg/m2 NA45L  5,7 6,1
  Weight kg/m2 NAP6 7,7 7,9
  Weight kg/m2 NAP7 8,3 8,5
  Coef. of insulation W/m².°K (NA45L) 1.58 1.40

Advantages :

Strong lightweight panel.
Excellent resistance to humidity in external uses.

Types / Glass reinforcement :

NA45L : 850g/m²     NAP6 : 1230g/m²     NAP7 : 1510g/m²

Dimensions :

Other thicknesses : upon request.
Standard height  : 2480 mm
Maximum height  : 2850 mm

Upon specific request :

  • Coloured panels.
  • Special cuts according to drawings.
  • Peripheral and intermediate wood according to drawings.
  • Panels protected with plastic film upon request.

Applications :

Boxes, containers of lightweight vehicles, bottoms of swimming-pools.

Our panels fulfill the specifications of the norm NFT 57-950-1 – Please see also our user’s guide. Tolerances : Length : +/-3 mm if L < 3m, +/-5 mm if L > 3m //Width: +/- 3 mm/Thickness. : +/-1 mm/Diagonal diff.: 6 mm. Weight : +/- 10%.

This document has no contract value. Characteristics are only given for information and may be changed according to variations of raw materials. Our sales and conditions terms are available upon request or on our website.

Perlit – PET foam core

PER / PERS / PERSR

Lightweight panel with recycled PET foam

This lightweight and strong panel allows a light and direct fastening of moderate loads.

PET (polyethylene terephtalate) coated on both sides with glass fibre reinforced polyester resin.

PRODUCT DETAILS

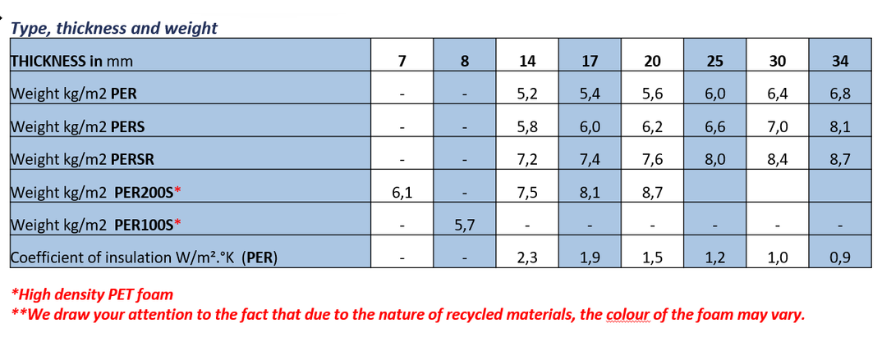

Thicknesses and weights :

  THICKNESS in mm 14 17 20 25 30 34
  Weight kg/m2 PER  5,2 5,4 5,6 6,0 6,4 6,8
  Weight kg/m2 PERS  5,8 6,0 6,2 6,6 7,0 8,1
  Weight kg/m2 PERSR  7,2 7,4 7,6 8,0 8,4 8,7
 Coef. of insulation W/m².°K (PER)  2,3 1,9 1,5 1,2 1,0 0,9

Advantages :

Good resistance to compression.

Types / Glass reinforcement :

PER : 930g/m²          PERS : 1200g/m²           PERSR : 1810g/m²

Foam density :

Standard : 75 kgs/m3

Other density : on request.

Dimensions :

Standard height : 2440 mm.          Standard length  : up to 13550 mm

Special sizes : upon request.

Upon specific request :

  • Coloured panels.
  • Special cuts according to drawings.
  • Panels protected with plastic film upon request.

Applications :

 Lightweight vehicles, advertising panels.

Our panels fulfill the specifications of the norm NFT 57-950-1 – Please see also our user’s guide. Tolerances : Length : +/-3 mm if L < 3m, +/-5 mm if L > 3m //Width: +/- 3 mm/Thickness. : +/-1 mm/Diagonal diff.: 6 mm. Weight : +/- 10%.

This document has no contract value. Characteristics are only given for information and may be changed according to variations of raw materials. Our sales and conditions terms are available upon request or on our website.

Perlit – PET foam core

download-pdf

PER / PERS / PERSR

Lightweight panel with recycled PET foam

This lightweight and strong panel allows a light and direct fastening of moderate loads.

PET (polyethylene terephtalate) coated on both sides with glass fibre reinforced polyester resin.

PRODUCT DETAILS

Thicknesses and weights :

  THICKNESS in mm 14 17 20 25 30 34
  Weight kg/m2 PER  5,2 5,4 5,6 6,0 6,4 6,8
  Weight kg/m2 PERS  5,8 6,0 6,2 6,6 7,0 8,1
  Weight kg/m2 PERSR  7,2 7,4 7,6 8,0 8,4 8,7
 Coef. of insulation W/m².°K (PER)  2,3 1,9 1,5 1,2 1,0 0,9

Advantages :

Good resistance to compression.

Types / Glass reinforcement :

PER : 930g/m²          PERS : 1200g/m²           PERSR : 1810g/m²

Foam density :

Standard : 75 kgs/m3

Other density : on request.

Dimensions :

Standard height : 2440 mm.          Standard length  : up to 13550 mm

Special sizes : upon request.

Upon specific request :

  • Coloured panels.
  • Special cuts according to drawings.
  • Panels protected with plastic film upon request.

Applications :

 Lightweight vehicles, advertising panels.

Our panels fulfill the specifications of the norm NFT 57-950-1 – Please see also our user’s guide. Tolerances : Length : +/-3 mm if L < 3m, +/-5 mm if L > 3m //Width: +/- 3 mm/Thickness. : +/-1 mm/Diagonal diff.: 6 mm. Weight : +/- 10%.

This document has no contract value. Characteristics are only given for information and may be changed according to variations of raw materials. Our sales and conditions terms are available upon request or on our website.
